SkySense AS 57mm

Artikkelnr.: 900057

Ta kontakt via skjemaet under for pris

Ønskeliste
Forespør et pristilbud for dette produktet:

  • Produktinfo
  • PDF Download

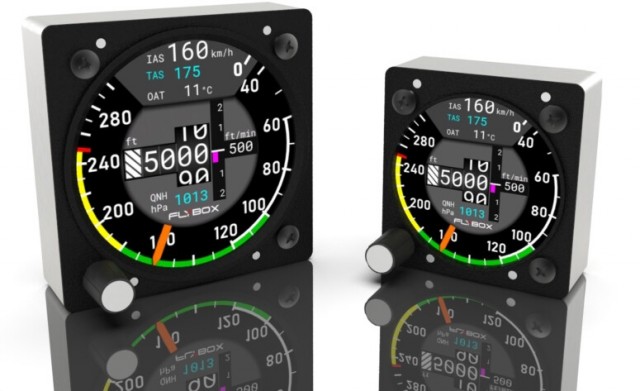

SkySense AS combines the three primary flight instruments every pilot uses the most, Airspeed Indicator, Altimeter and Vertical Speed Indicator, inside a single ultra-thin digital instrument.
With an high brightness sunlight-readable display, configurable interface and CAN Bus connectivity, SkySense AS offers the precision of modern avionics while preserving the intuitive readability of traditional flight instruments. Available in 57mm and 80mm sizes, SkySense AS fits seamlessly into your dashboard.

Why choose SkySense AS?

  • Full customization: user-configurable scales, units and styles allow you to tailor the instrument to your specific flying needs and preferences.
  • Free pre-configuration: of the instrument is available upon request.
  • Advanced features: TAS (True Airspeed) and Airspeed provide reliable data for safe and accurate navigation.
  • Reliability and safety: The self-diagnostic system continuously monitors instrument health, minimizing risks and unexpected issues during flight.
  • CAN BUS connectivity: Easy integration with other avionics systems onboard, creating a modern and functional cockpit.
  • Reading comfort: Auto dimmer, Anti Glare TFT display and a 280° smart scale ensure optimal visibility in all lightnig conditions, from bright sunlight to twilight.



Customization choices
Light or Dark ASI Background
Tape or Drum Altimeter
Colored or neutral VSI numbers
Main features:
  • Air Speed Indicator (Kmh, Mph, Kts)
  • Drum or Tape Altimeter (Feet, Meters)
  • VSI (Feet/m, Mt/s)
  • Outside Air Temperature (°C, °F)
  • True Air Speed (if the sensor is installed)
Interfaces:
  • Knob with pushbutton
  • CAN bus
  • Light Sensor input
  • USB 2.0 port
  • Static and Pitot ports
  • Can be connected in cluster with other Omnia instruments
Manufacturing:
  • Rugged case milled from solid aluminium
  • Powder-painted
  • 100% manufactured and tested with automatic processes

Functions:
  • Manual or Automatic Backlight dimmer
  • Easy software updating through the USB port

Customizations:
  • Color of the VSI number;
  • Tape of drum altimeter view
  • Light or dark ASI background
What is included:
  • SkySense AS instrument
  • Power cable
  • Quick Reference Guide
  • M4x10mm screws
  • Packing list

Optional accessories:
  • Cod. 105801 Wired Ambient Light sensor for SkySense
  • Cod. 601021 OAT probe (Outside air temp.) for SkySense
  • Cod. 604012 USB compliant connection kit
